Two 4-inch conduits are routed underground to accommodate both public and private communication lines. One 4-inch conduit is dedicated to public communication and the other 4-inch conduit is dedicated to private communication. Public and private conduits require separate settlement vaults.

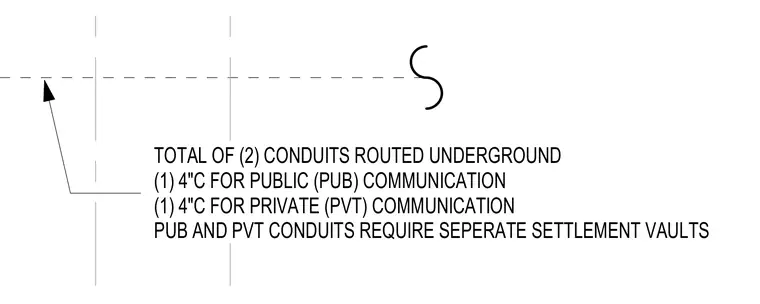

TOTAL OF (2) CONDUITS ROUTED UNDERGROUND (1) 4"C FOR PUBLIC (PUB) COMMUNICATION (1) 4"C FOR PRIVATE (PVT) COMMUNICATION PUB AND PVT CONDUITS REQUIRE SEPERATE SETTLEMENT VAULTS
