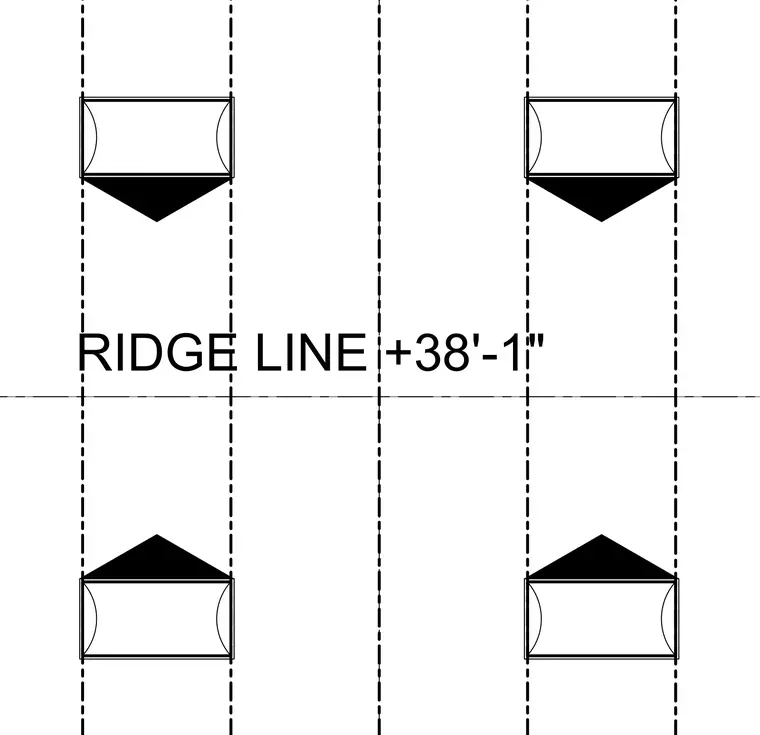

The roof ridge line alignment is established at elevation positive thirty-eight feet one inch relative to datum. Vertical grid lines intersect the horizontal ridge reference axis, locating structural roof framing members.
