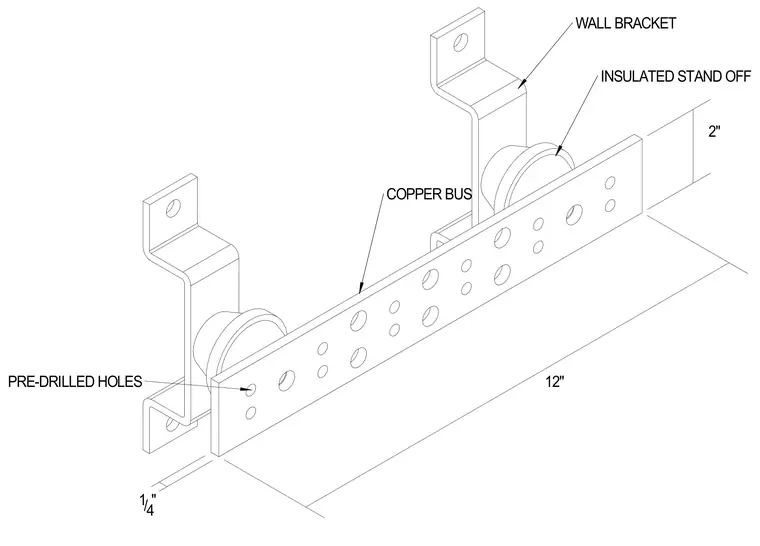

A twelve-inch copper bus bar is supported off the wall by two insulated standoffs and wall brackets. The quarter-inch thick bus bar features pre-drilled holes arranged for grounding connections. The brackets secure the assembly to the building wall while maintaining electrical isolation through the standoffs.
