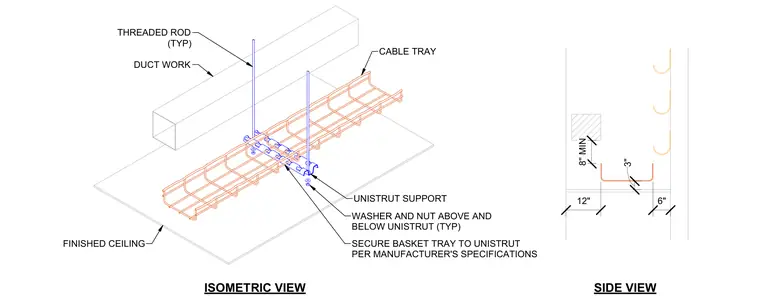

A wire basket cable tray is supported by a horizontal Unistrut channel suspended from dual vertical threaded rods. Washers and nuts secure the assembly above and below the Unistrut channel typically. The basket tray is fastened to the Unistrut according to the manufacturer's specifications. Clearances and dimensional constraints are maintained relative to adjacent ductwork and the finished ceiling.
ISOMETRIC VIEW SIDE VIEW CABLE TRAY UNISTRUT SUPPORT THREADED ROD (TYP) DUCT WORK FINISHED CEILING WASHER AND NUT ABOVE AND BELOW UNISTRUT (TYP) SECURE BASKET TRAY TO UNISTRUT PER MANUFACTURER'S SPECIFICATIONS 12" 6" 3" 8" MIN
