Multiple Conduit Mounting Detail

Materials

About this detail

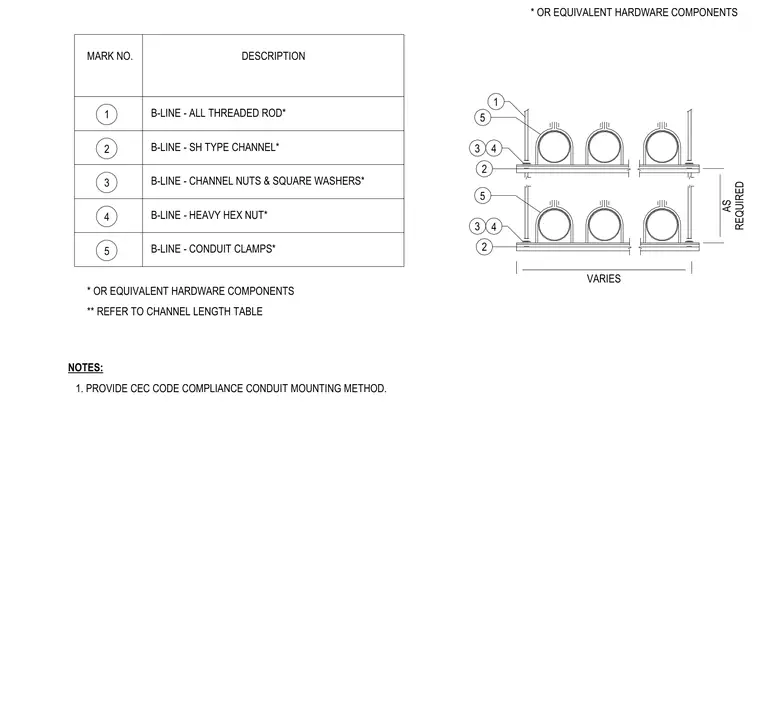

Multiple conduits are supported on stacked tiers using all-threaded rods, SH type strut channels, channel nuts, square washers, heavy hex nuts, and conduit clamps. The channel length and vertical spacing between tiers vary as required per the channel length table and field conditions. All mounting methods must comply with CEC code compliance requirements.
