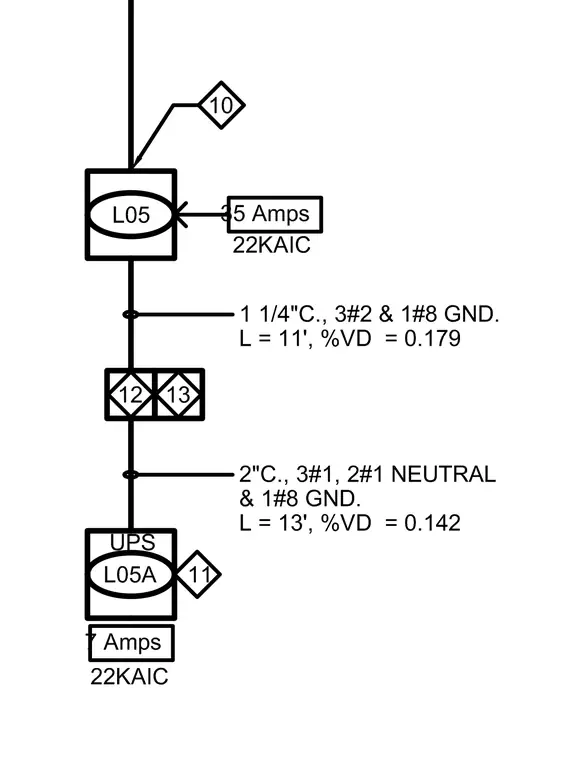

An electrical riser diagram details power distribution from panel L05 rated at 125 Amps and 22KAIC through a feeder consisting of a 1 1/4 inch conduit containing three number 2 conductors and one number 8 ground over an 11-foot run with 0.179 percent voltage drop. The circuit passes through junction boxes 12 and 13 before connecting to an uninterruptible power supply at panel L05A rated at 75 Amps and 22KAIC via a 2-inch conduit containing three number 1 conductors, two number 1 neutral conductors, and one number 8 ground over a 13-foot run with 0.142 percent voltage drop.
