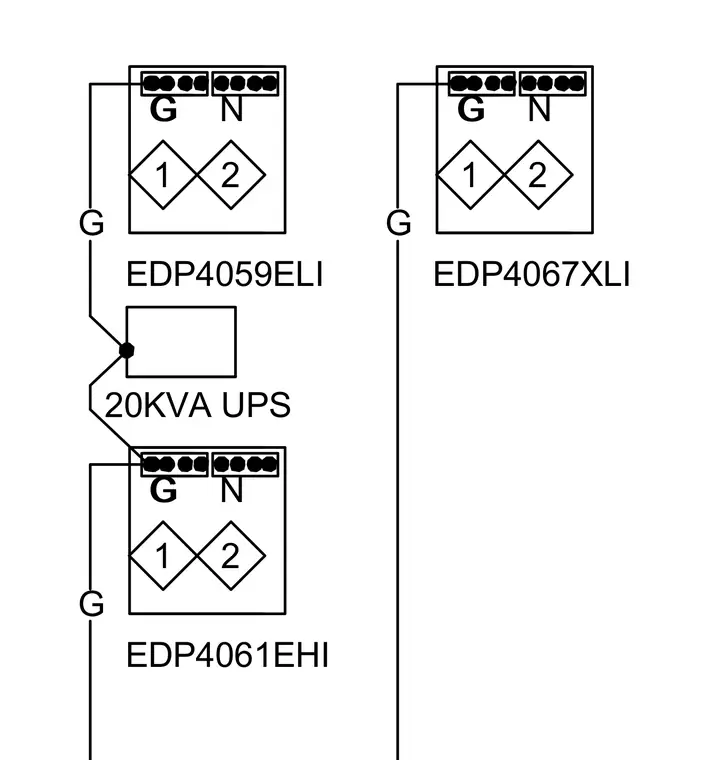

A 20KVA uninterruptible power supply unit connects to distribution panels EDP4059ELI, EDP4061EHI, and EDP4067XLI with designated grounding and neutral connections. Ground wires link the units with clear terminal designations for each circuit path.
