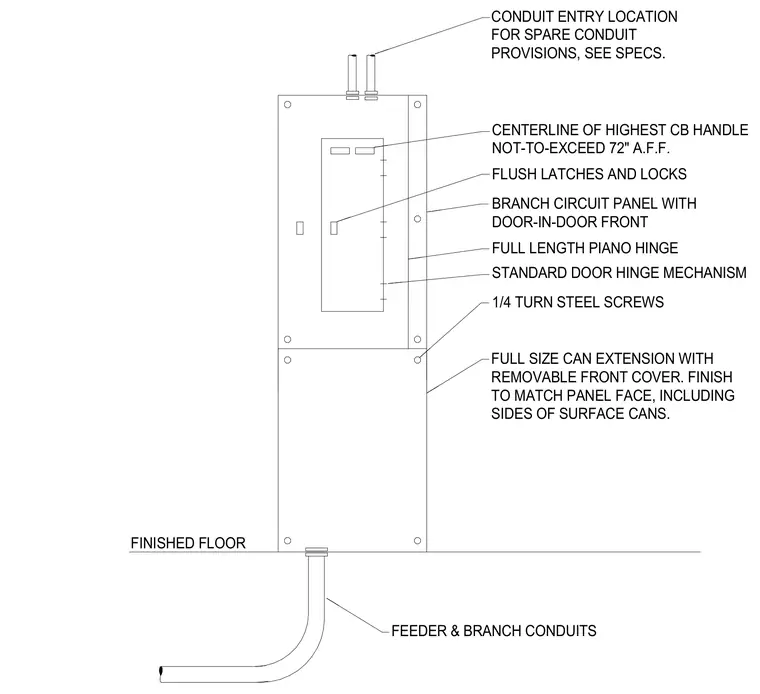

A branch circuit panel features a door-in-door front mounted on a full-length piano hinge and standard door hinge mechanisms. The enclosure is secured with one-quarter turn steel screws and includes flush latches and locks. A full-size can extension with a removable front cover is installed below the main panel, finished to match the panel face including the sides of the surface cans. Feeder and branch conduits enter from the bottom above the finished floor, while spare conduit provisions enter from the top. The centerline of the highest circuit breaker handle is positioned not to exceed seventy-two inches above the finished floor.
FEEDER & BRANCH CONDUITS FINISHED FLOOR REMOVABLE FRONT COVER. FINISH FULL SIZE CAN EXTENSION WITH SIDES OF SURFACE CANS. TO MATCH PANEL FACE, INCLUDING CONDUIT ENTRY LOCATION CENTERLINE OF HIGHEST CB HANDLE NOT-TO-EXCEED 72" A.F.F. 1/4 TURN STEEL SCREWS FLUSH LATCHES AND LOCKS BRANCH CIRCUIT PANEL WITH DOOR-IN-DOOR FRONT FULL LENGTH PIANO HINGE STANDARD DOOR HINGE MECHANISM FOR SPARE CONDUIT PROVISIONS, SEE SPECS.
