The fire alarm terminal cabinet FATC receives a 120-volt power supply and houses backup batteries connected to the fire alarm control panel. Conductors are installed per manufacturer written instructions, particularly when notification appliance circuits are separate from the main control panel.

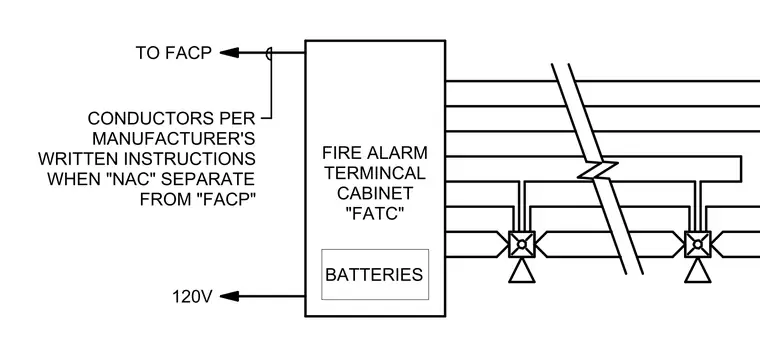

120V FIRE ALARM TERMINCAL CABINET "FATC" CONDUCTORS PER MANUFACTURER'S WRITTEN INSTRUCTIONS WHEN "NAC" SEPARATE FROM "FACP" TO FACP BATTERIES
