Electrical · E-QATXR

Method Of Bonding Conduit Or Pipe To Grd. Ring

About this detail

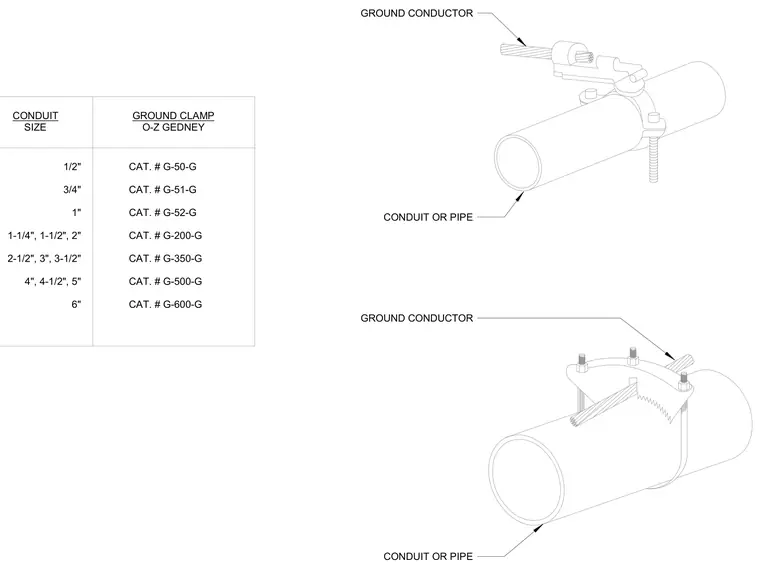

A ground conductor is mechanically secured to a conduit or pipe using an O-Z Gedney ground clamp matched to the specific conduit size. The schedule correlates conduit sizes ranging from one-half inch to six inches with corresponding catalog numbers from G-50-G through G-600-G. The assembly provides a reliable electrical bond between the grounding ring conductor and metallic raceways or piping systems.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
