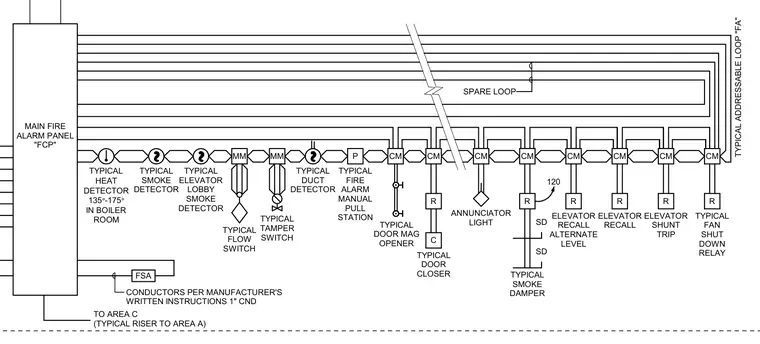

Fire Alarm Riser Diagram

Elements

About this detail

System interconnections originate from the main fire alarm panel and connect to addressable loops, heat and smoke detectors, manual pull stations, and duct smoke detectors. Specialized monitoring devices include typical flow and tamper switches, sprinkler system connections, and smoke dampers routed through one-inch conduits. Life safety integration features include elevator recall for alternate levels, elevator shunt trip mechanisms, door magnetic openers, and fan shutdown relays per manufacturer written instructions.
