Wattnode BACnet Wiring Detail

Elements

About this detail

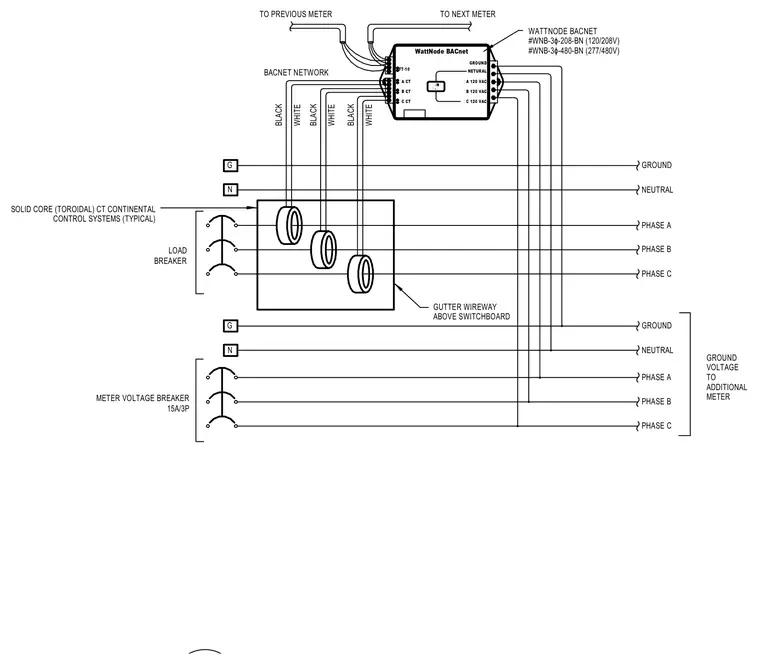

A Wattnode BACnet power meter connects to solid core toroidal current transformers located in a gutter wireway above the switchboard. Phase A, Phase B, Phase C, neutral, and ground conductors route from the load breaker through the current transformers to the meter terminals. A meter voltage breaker rated at 15A/3P supplies voltage references for Phase A, Phase B, and Phase C to the meter. Connections continue to previous and additional meters alongside BACnet network communication wiring.
