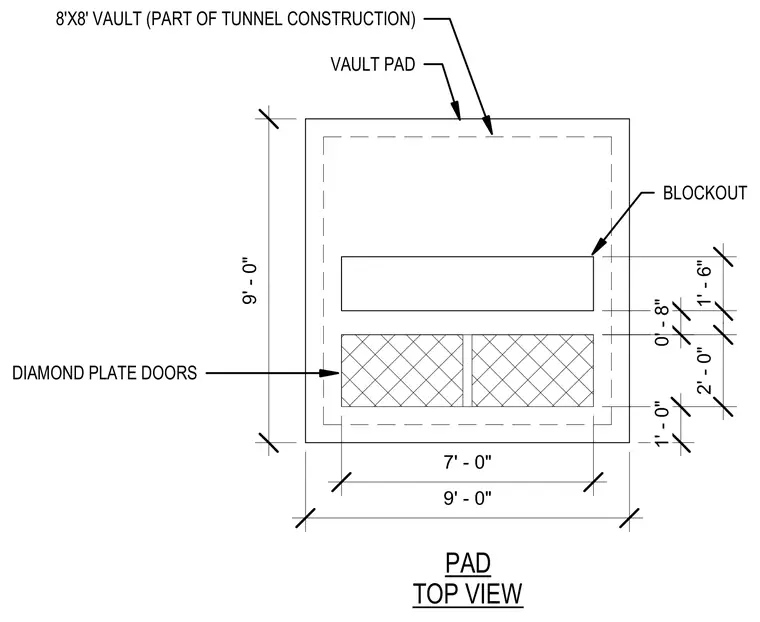

This plan detail shows the top view of a medium voltage switchgear pad associated with an eight-foot by eight-foot vault as part of a tunnel construction. The concrete pad measures nine feet by nine feet overall with internal blockouts and diamond plate access doors indicated by callouts. Dimension strings detail the exact positioning and spacing of the blockouts and door openings across the pad.
1' - 6" 0' - 8" 2' - 0" 1' - 0" 7' - 0" 9' - 0" 9' - 0" PAD TOP VIEW 8'X8' VAULT (PART OF TUNNEL CONSTRUCTION) VAULT PAD BLOCKOUT DIAMOND PLATE DOORS
