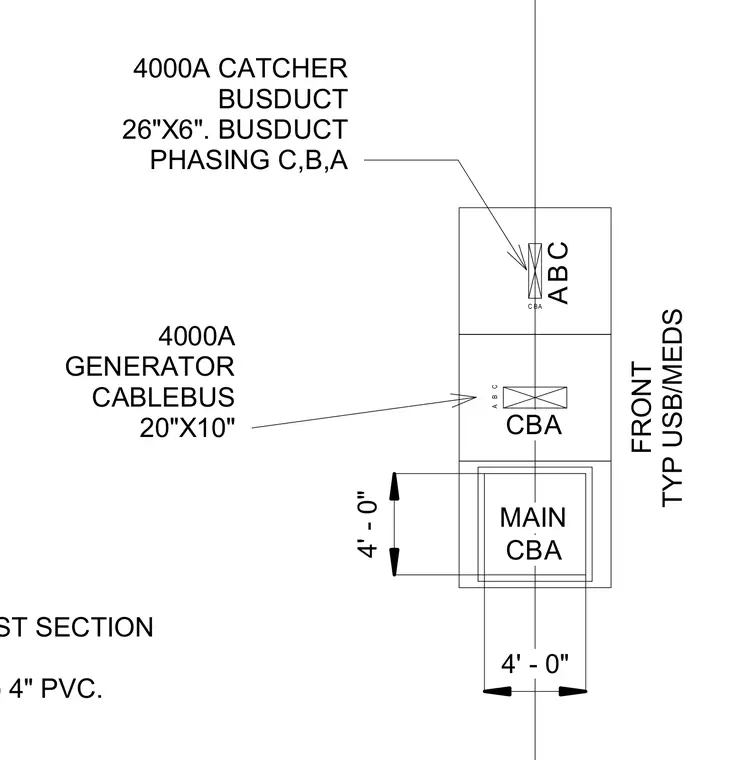

An electrical equipment pit section layout features a 4000-ampere generator cablebus measuring twenty by ten inches and a 4000-ampere catcher busduct measuring twenty-six by six inches. Busduct phasing is designated as C, B, and A with corresponding orientation markers. Twenty four-inch PVC conduits enter the pit under the first section. Clear dimensions of four feet by four feet establish the pit clearance and alignment with the main front typical USB and MEDS equipment.
4000A GENERATOR CABLEBUS 20"X10" 4000A CATCHER BUSDUCT 26"X6". BUSDUCT PHASING C,B,A PIT UNDER FIRST SECTION CONDUITS. (20) 4" PVC. MAIN FRONT TYP USB/MEDS AB C A B C A B C A B C A B C 4' - 0" 4' - 0"
