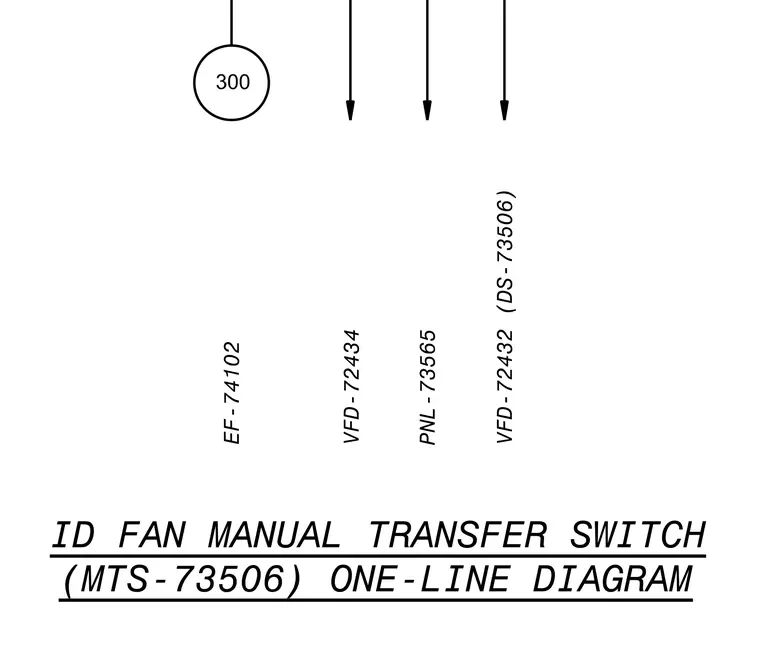

This one-line diagram details the electrical connections for the ID fan manual transfer switch MTS-73506. The schematic maps the circuit relationships between manual transfer switch MTS-73506, variable frequency drives VFD-72432 and VFD-72434, panel PNL-73565, exhaust fan EF-74102, and disconnect switch DS-73506.
ID FAN MANUAL TRANSFER SWITCH (MTS-73506) ONE-LINE DIAGRAM VFD-72432 (DS-73506) PNL- 73565 VFD-72434 o EF-74102 o 00
