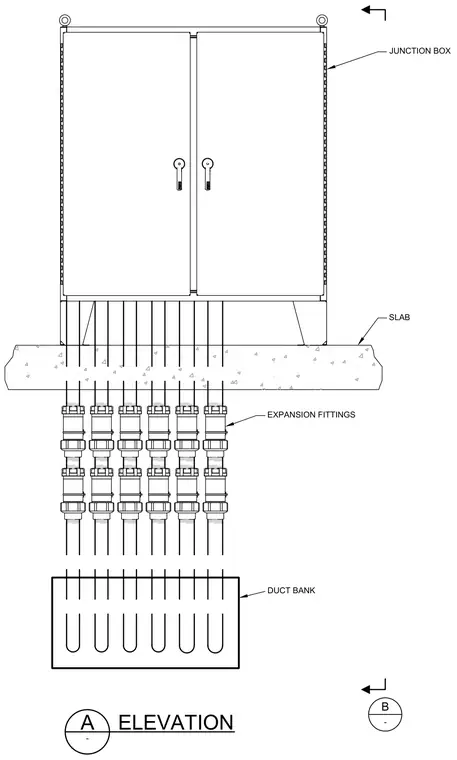

An electrical junction box is mounted above a concrete slab with multiple conduits running downwards through the slab. Expansion fittings are installed on each conduit in the vertical run between the slab underside and the underground duct bank to accommodate structural movement.
