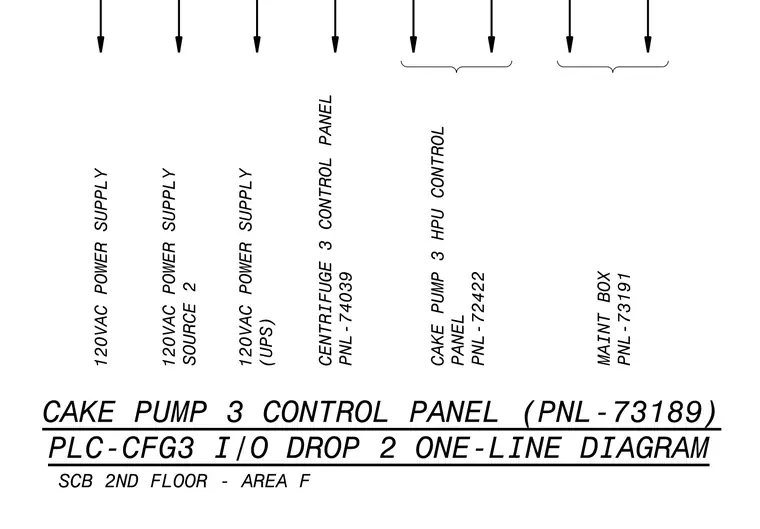

This one-line diagram details the electrical distribution for the cake pump three control panel and associated I/O drop. Power is supplied from multiple sources including a one hundred twenty volt alternating current uninterruptible power supply and secondary sources. Connections route to the centrifuge three control panel, cake pump three hydraulic power unit control panel, and maintenance box located on the second floor area F.
CAKE PUMP 3 CONTROL PANEL (PNL-73189) PLC-CFG3 I/O DROP 2 ONE-LINE DIAGRAM SCB 2ND FLOOR - AREA F MAINT BOX PNL-73191 CAKE PUMP 3 HPU CONTROL PANEL PNL- 72422 CENTRIFUGE 3 CONTROL PANEL PNL- 74039 120VAC POWER SUPPLY (UPS) 120VAC POWER SUPPLY SOURCE 2 120VAC POWER SUPPLY
