A 1/4" thick copper ground bar is mounted at 20 inches above the finished floor using 2-1/2" bakelite standoff insulators. A 500 MCM conductor from the ground well connects to the bar via exothermically welded connections. Two-hole compression-type connectors attach conductors to the bar, which features typical 3/8" mounting holes spaced across the plate.

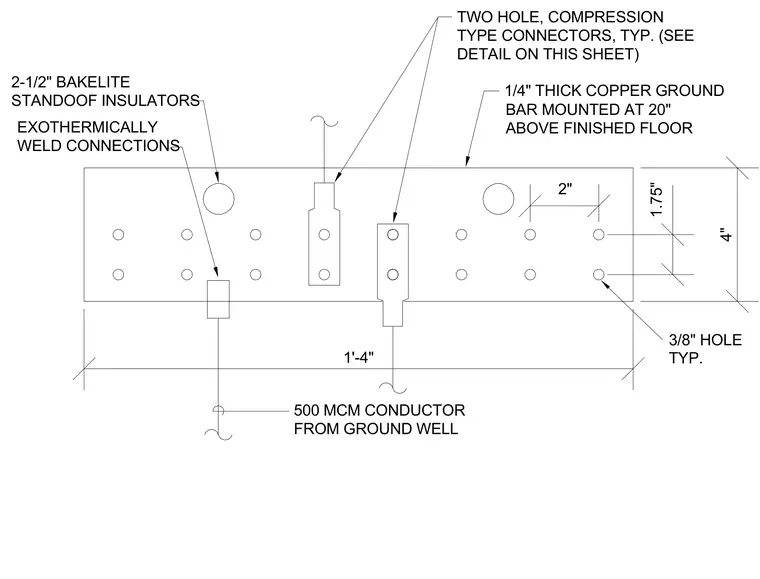

TYP. 3/8" HOLE 1'-4" 4" 500 MCM CONDUCTOR FROM GROUND WELL 1.75" 2" EXOTHERMICALLY WELD CONNECTIONS 1/4" THICK COPPER GROUND BAR MOUNTED AT 20" ABOVE FINISHED FLOOR 2-1/2" BAKELITE STANDOOF INSULATORS TWO HOLE, COMPRESSION TYPE CONNECTORS, TYP. (SEE DETAIL ON THIS SHEET)
