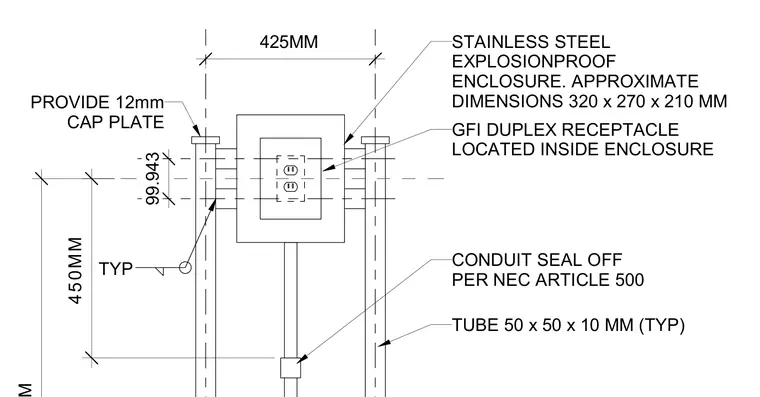

A 450-millimeter stainless steel explosionproof enclosure with approximate dimensions of 320 by 270 by 210 millimeters is mounted between vertical 50 by 50 by 10-millimeter structural steel tubes. A ground fault circuit interrupter duplex receptacle is located inside the enclosure, fed by a conduit featuring a seal off installed per National Electrical Code Article 500. The support framing includes typical 12-millimeter cap plates welded to the tops of the steel tubes.
450MM STAINLESS STEEL EXPLOSIONPROOF ENCLOSURE. APPROXIMATE DIMENSIONS 320 x 270 x 210 MM GFI DUPLEX RECEPTACLE LOCATED INSIDE ENCLOSURE CONDUIT SEAL OFF PER NEC ARTICLE 500 TUBE 50 x 50 x 10 MM (TYP) 99.943 425MM TYP PROVIDE 12mm CAP PLATE
