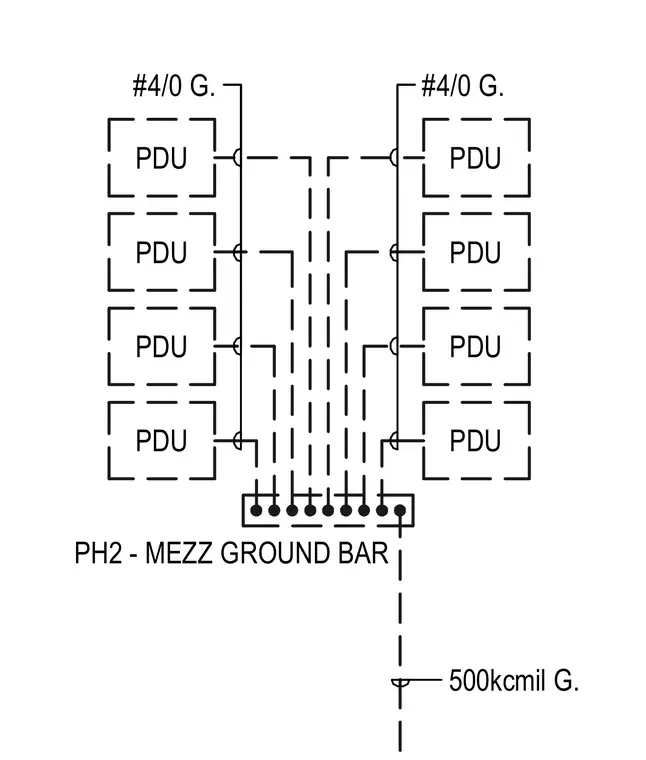

Eight power distribution units connect via number 4/0 grounding conductors to a central mezzanine ground bar. A 500kcmil grounding conductor extends from the ground bar to complete the grounding path. Each power distribution unit ties back individually to maintain a low-impedance grounding system.
PDU PDU PDU PDU PDU PDU PDU PDU PH2 - MEZZ GROUND BAR #4/0 G. #4/0 G. 500kcmil G.
