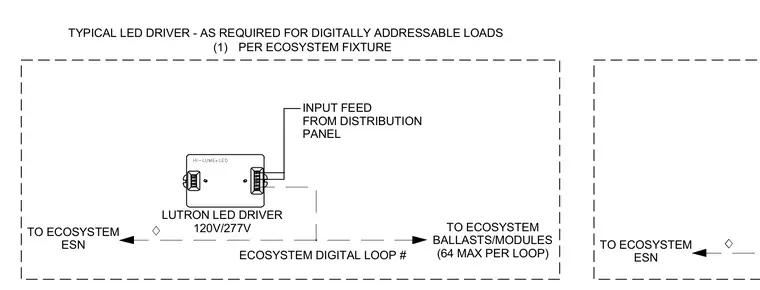

An input feed from the distribution panel connects to the 120V/277V Lutron Hi-Lume LED driver, providing power to the system. One driver is required per EcoSystem fixture for digitally addressable loads. The EcoSystem digital loop connects the driver to ballasts and modules with a maximum of sixty-four devices per loop, and interfaces with EcoSystem ESN units.
LUTRON LED DRIVER 120V/277V TO ECOSYSTEM BALLASTS/MODULES (64 MAX PER LOOP) HI-LUME LED ® INPUT FEED FROM DISTRIBUTION PANEL ECOSYSTEM DIGITAL LOOP # TYPICAL LED DRIVER - AS REQUIRED FOR DIGITALLY ADDRESSABLE LOADS (1) PER ECOSYSTEM FIXTURE TO ECOSYSTEM ESN TO ECOSYSTEM ESN
