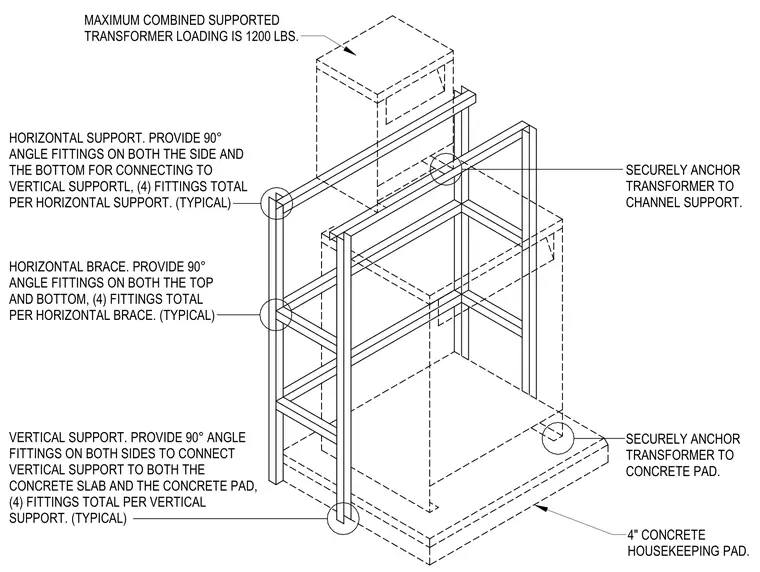

This assembly consists of a steel channel frame designed to support stacked transformers with a maximum combined loading of 1200 pounds. The vertical supports are anchored to a 4-inch concrete housekeeping pad using four 90-degree angle fittings per support. Horizontal supports and braces are integrated into the frame using four 90-degree angle fittings at each connection point. The transformers are securely anchored to the channel support members to ensure stability within the frame structure.
