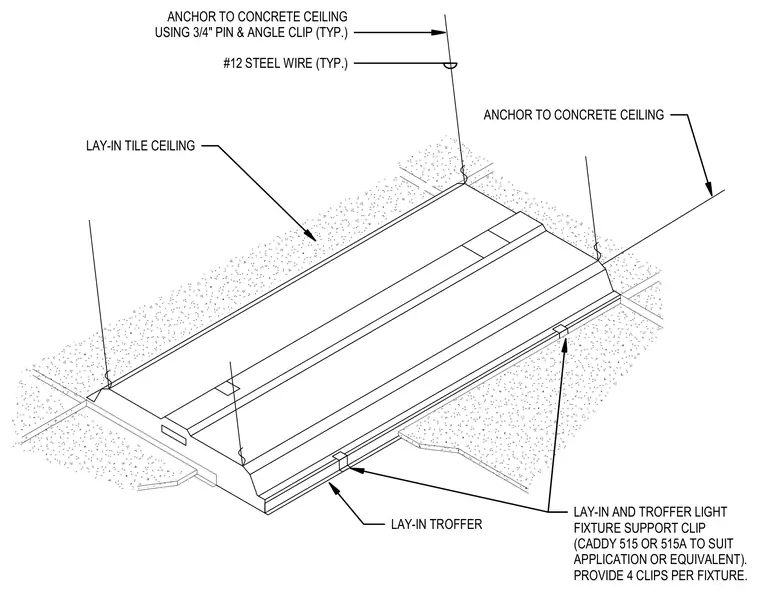

A lay-in troffer light fixture is suspended below a concrete ceiling using number twelve steel wire secured by an angle clip and three-quarter-inch pin. Four support clips are provided per fixture, utilizing Caddy 515 or 515A clips or an equivalent. The assembly integrates with a standard lay-in tile ceiling system.
LAY-IN AND TROFFER LIGHT FIXTURE SUPPORT CLIP (CADDY 515 OR 515A TO SUIT APPLICATION OR EQUIVALENT). PROVIDE 4 CLIPS PER FIXTURE. LAY-IN TROFFER LAY-IN TILE CEILING ANCHOR TO CONCRETE CEILING USING 3/4" PIN & ANGLE CLIP (TYP.) #12 STEEL WIRE (TYP.) ANCHOR TO CONCRETE CEILING
