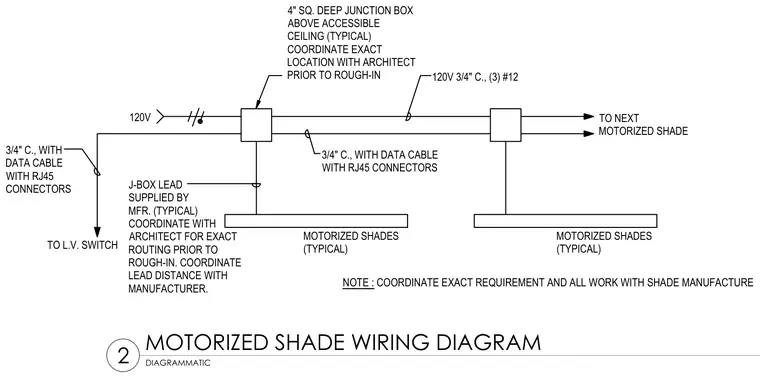

Motorized Shade Wiring Diagram

Elements

About this detail

A 120V power supply feeds a four-inch square deep junction box located above an accessible ceiling, running three number twelve conductors in a three-quarter-inch conduit. Low-voltage control runs through a three-quarter-inch conduit with data cable and RJ45 connectors connecting to a low-voltage switch and continuing to the next motorized shade. The manufacturer supplies the junction box lead, requiring coordination with the architect for exact location, routing, and lead distance prior to rough-in. Exact requirements and work must be coordinated with the shade manufacturer.
