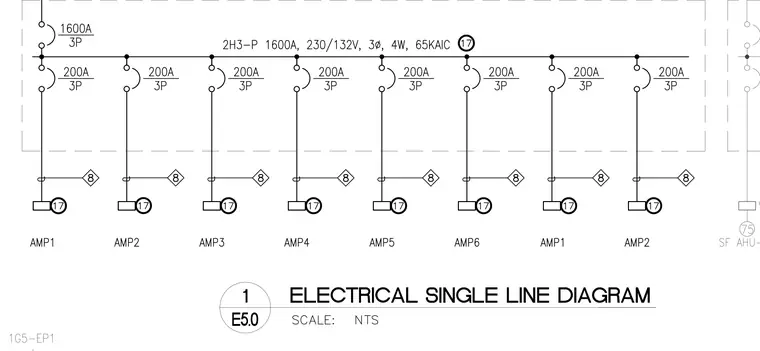

An electrical single line diagram details a 2H3-P 1600A, 230/132V, 3-phase, 4-wire, 65KAIC main bus protected by a 1600A 3-pole main device. Eight 200A 3-pole branch breakers tap off the main bus to feed individual distribution points designated as AMP1 through AMP6, AMP1, and AMP2. Each branch circuit includes a current transformer or monitoring device tied to reference tag 8 and feeds into a downstream equipment connection labeled with reference tag 17.
