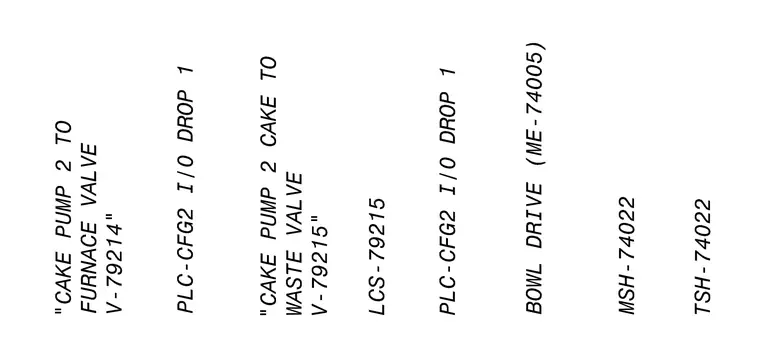

This electrical schematic fragment details instrumentation and control points connected to PLC-CFG2 I/O drop 1. It includes tag numbers for temperature switch TSH-74022, moisture switch MSH-74022, and bowl drive ME-74005. Control loops are established for cake pump 2 waste valve V-79215 controlled via local control station LCS-79215, as well as cake pump 2 to furnace valve V-79214.
TSH-74022 MSH-74022 BOWL DRIVE (ME-74005) PLC-CFG2 I/O DROP 1 LCS-79215 " CAKE PUMP 2 CAKE TO WASTE VALVE V-79215" PLC-CFG2 I/O DROP 1 " CAKE PUMP 2 TO FURNACE VALVE V-79214"
