Pedestrian light poles are anchored to cast-in-place concrete footings using manufacturer-specified anchor bolts embedded with conduit and conductors. The galvanized base plate is secured with galvanized bolts and washers, and protected by a base canopy finished to match the pole. A handhole with non-ferrous tamper-proof screws is provided on the shaft. The surrounding conditions differentiate between planting areas and paved surfaces with a chamfered concrete edge.

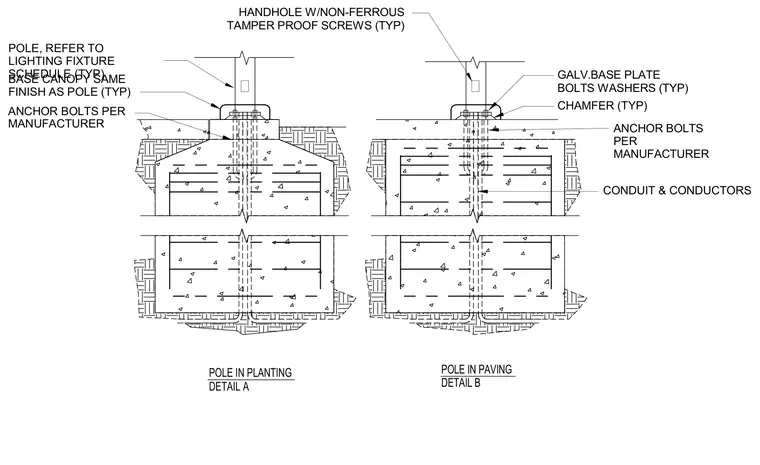

POLE IN PLANTING DETAIL A POLE IN PAVING DETAIL B ANCHOR BOLTS PER MANUFACTURER POLE, REFER TO LIGHTING FIXTURE SCHEDULE (TYP) BASE CANOPY SAME FINISH AS POLE (TYP) GALV.BASE PLATE BOLTS WASHERS (TYP) CHAMFER (TYP) CONDUIT & CONDUCTORS HANDHOLE W/NON-FERROUS TAMPER PROOF SCREWS (TYP) ANCHOR BOLTS PER MANUFACTURER
