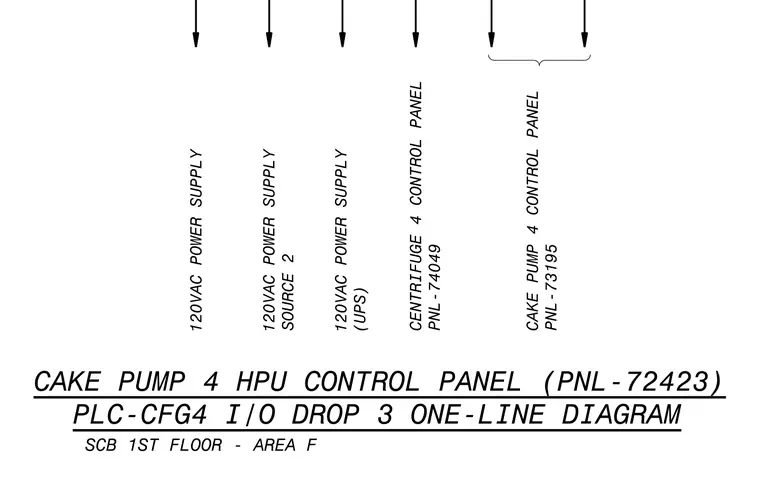

An electrical one-line diagram details the power supply connections and I/O drops for the cake pump hydraulic power unit control panel PNL-72423 located on the first floor in area F. The diagram outlines connections for the 120-volt AC power supply, uninterruptible power supply source, and secondary power feeds. Additional equipment feeds include centrifuge control panel PNL-74049 and cake pump control panel PNL-73195.
CAKE PUMP 4 HPU CONTROL PANEL (PNL-72423) PLC-CFG4 I/O DROP 3 ONE-LINE DIAGRAM SCB 1ST FLOOR - AREA F CAKE PUMP 4 CONTROL PANEL PNL-73195 CENTRIFUGE 4 CONTROL PANEL PNL- 74049 120VAC POWER SUPPLY (UPS) 120VAC POWER SUPPLY SOURCE 2 120VAC POWER SUPPLY
