Electrical · E-PSA4K

Wireless Lighting Control Sensors and Keypad Configurations

Elements

About this detail

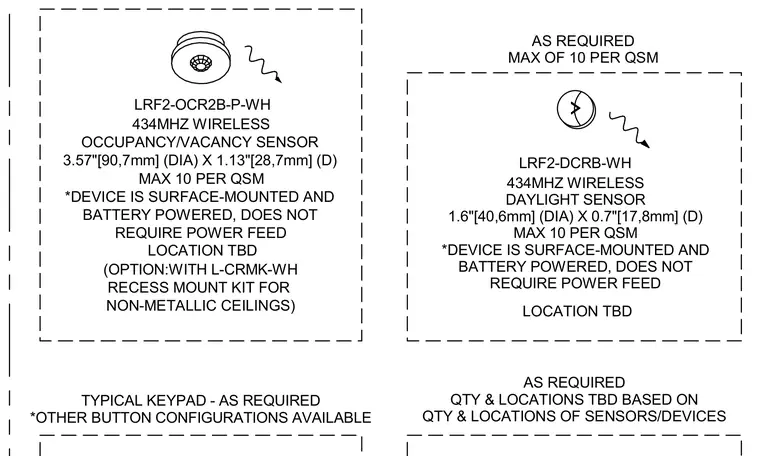

Wireless occupancy/vacancy sensors and daylight sensors operate on a 434MHz frequency and are surface-mounted and battery-powered without requiring a power feed. The occupancy sensor measures 3.57 inches in diameter by 1.13 inches deep with an optional recess mount kit available for non-metallic ceilings. The daylight sensor measures 1.6 inches in diameter by 0.7 inches deep. Both sensor types limit quantities to a maximum of ten devices per quantum sensor module. Typical keypads are installed as required with alternate button configurations available based on sensor and device quantities and locations.
