Electrical · E-PS8XY

Temporary MHF Control Console One-Line Diagram

Elements

About this detail

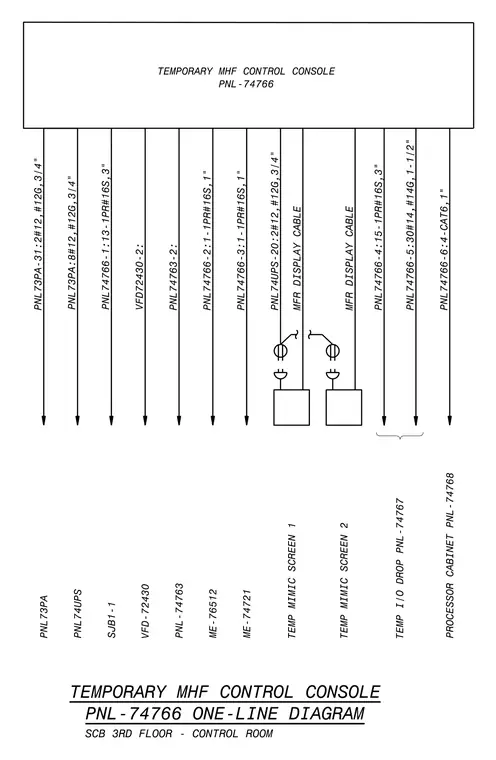

This electrical one-line diagram details the circuit connections, conduit sizes, and wire configurations for the temporary MHF control console PNL-74766 located in the 3rd floor control room. Feeders and control cables interconnect the console with various panels and equipment including PNL73PA, PNL74UPS, VFD-72430, PNL-74763, temporary I/O drop panel PNL-74767, and manufacturer display screens. Conduits ranging from three-quarter inch to one-and-a-half inches route specific conductor bundles such as twelve gauge wires, shielded twisted pairs, and Cat6 data cables. Manufacturer display cables and tagged source-destination circuits are clearly mapped for temporary control system integration.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
