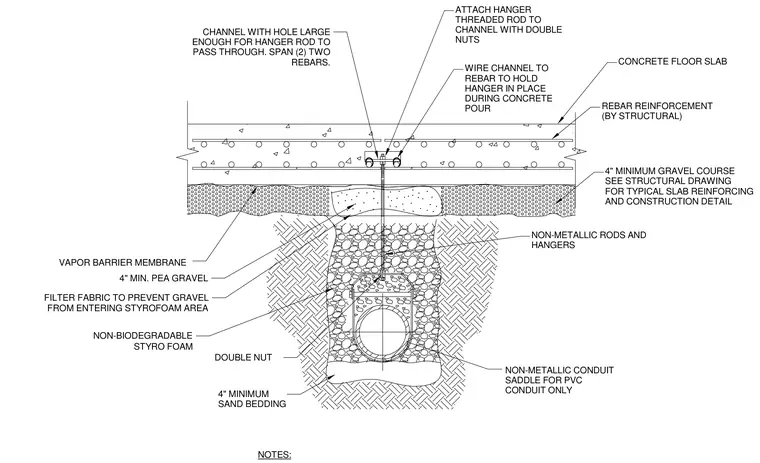

An underslab conduit hanger is suspended from a concrete floor slab using a threaded rod attached to a steel channel that spans two rebar reinforcements. The channel is wired to the rebar to maintain its position during the concrete pour. The non-metallic threaded rod extends down into a trench surrounded by a four-inch minimum pea gravel course, non-biodegradable styrofoam, and a filter fabric to prevent gravel infiltration. A non-metallic conduit saddle secures the PVC conduit, resting upon a four-inch minimum sand bedding below a vapor barrier membrane.
CHANNEL WITH HOLE LARGE ENOUGH FOR HANGER ROD TO PASS THROUGH. SPAN (2) TWO REBARS. ATTACH HANGER THREADED ROD TO CHANNEL WITH DOUBLE NUTS CONCRETE FLOOR SLAB WIRE CHANNEL TO REBAR TO HOLD HANGER IN PLACE DURING CONCRETE POUR REBAR REINFORCEMENT (BY STRUCTURAL) 4" MINIMUM GRAVEL COURSE SEE STRUCTURAL DRAWING FOR TYPICAL SLAB REINFORCING AND CONSTRUCTION DETAIL NON-METALLIC RODS AND HANGERS VAPOR BARRIER MEMBRANE DOUBLE NUT 4" MINIMUM SAND BEDDING NOTES: NON-BIODEGRADABLE STYRO FOAM 4" MIN. PEA GRAVEL FILTER FABRIC TO PREVENT GRAVEL FROM ENTERING STYROFOAM AREA NON-METALLIC CONDUIT SADDLE FOR PVC CONDUIT ONLY
