Electrical · E-PMWF3

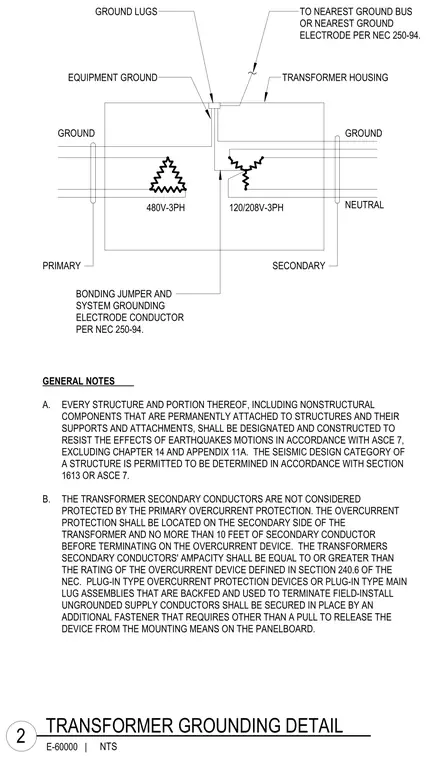

Transformer Grounding Detail

About this detail

Transformer housing ground lugs, equipment ground, and neutral connections operate alongside the primary and secondary 480V and 120/208V three-phase circuits. A bonding jumper and system grounding electrode conductor connect to the transformer per NEC 250-94 requirements. A continuous path links the transformer housing to the nearest ground bus or ground electrode.
