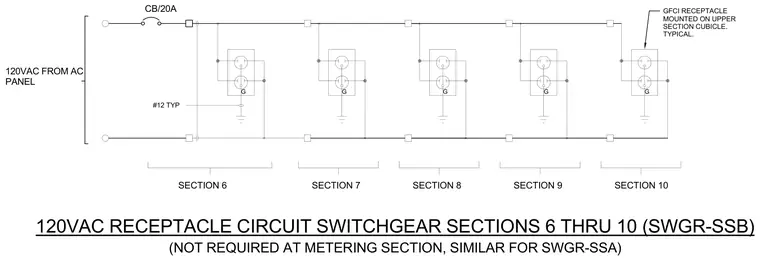

This electrical schematic details a 120VAC receptacle circuit powered from an alternating current panel through a twenty-ampere circuit breaker. Conductors consist of number twelve wire typically throughout the system. Multiple ground fault circuit interrupter receptacles are mounted on the upper section cubicles across switchgear sections six through ten.
SECTION 6 SECTION 7 SECTION 8 SECTION 9 G G G G 120VAC RECEPTACLE CIRCUIT SWITCHGEAR SECTIONS 6 THRU 10 (SWGR-SSB) 120VAC FROM AC PANEL SECTION 10 G (NOT REQUIRED AT METERING SECTION, SIMILAR FOR SWGR-SSA) CB/20A #12 TYP GFCI RECEPTACLE MOUNTED ON UPPER SECTION CUBICLE. TYPICAL.
