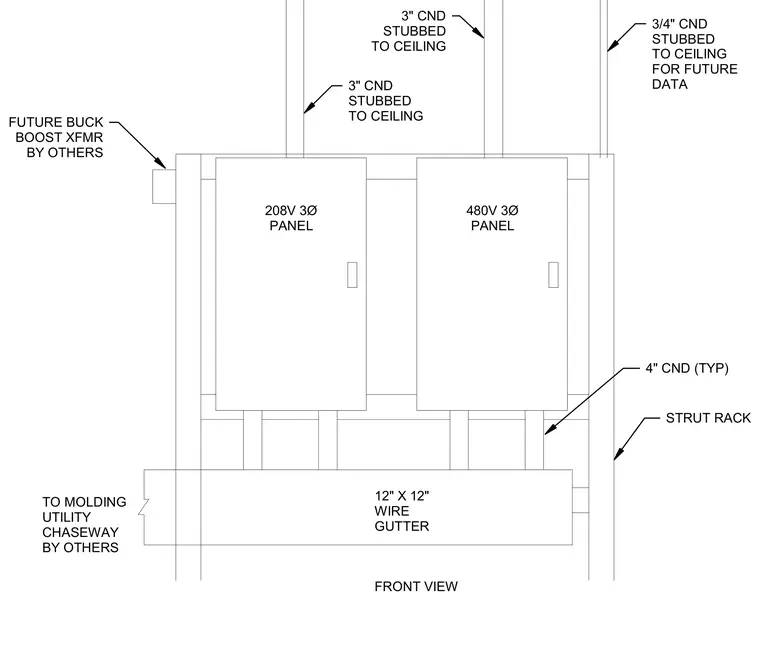

This electrical connection rack assembly supports a four hundred eighty volt three-phase panel and a two hundred eight volt three-phase panel mounted on a strut rack. A twelve-inch by twelve-inch wire gutter receives four-inch conduits typically routed from the panels and connects to a molding utility chaseway provided by others. Three-inch conduits stub up to the ceiling from the assembly, alongside a three-quarter-inch conduit stubbed up for future data. A future buck boost transformer by others is positioned adjacent to the rack.
FRONT VIEW 480V 3Ø PANEL 208V 3Ø PANEL STRUT RACK FUTURE BUCK BOOST XFMR BY OTHERS 3" CND STUBBED TO CEILING 3" CND STUBBED TO CEILING 3/4" CND STUBBED TO CEILING FOR FUTURE DATA TO MOLDING UTILITY CHASEWAY BY OTHERS 4" CND (TYP) 12" X 12" WIRE GUTTER
