Slab on Grade Depression

Elements

About this detail

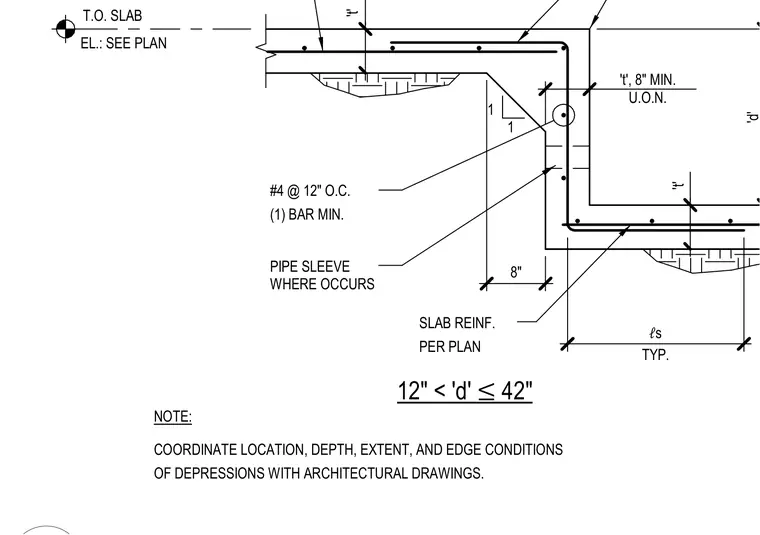

A reinforced concrete slab on grade depression accommodates conditions where the depth 'd' is greater than twelve inches and less than or equal to forty-two inches. The depression features standard slab reinforcement per plan, with additional #4 reinforcing bars spaced at twelve inches on center and at least one corner bar minimum. A pipe sleeve is included where required per plan. Edge conditions and depression locations must be coordinated with architectural drawings, maintaining an 8 inch minimum thickness unless otherwise noted.
