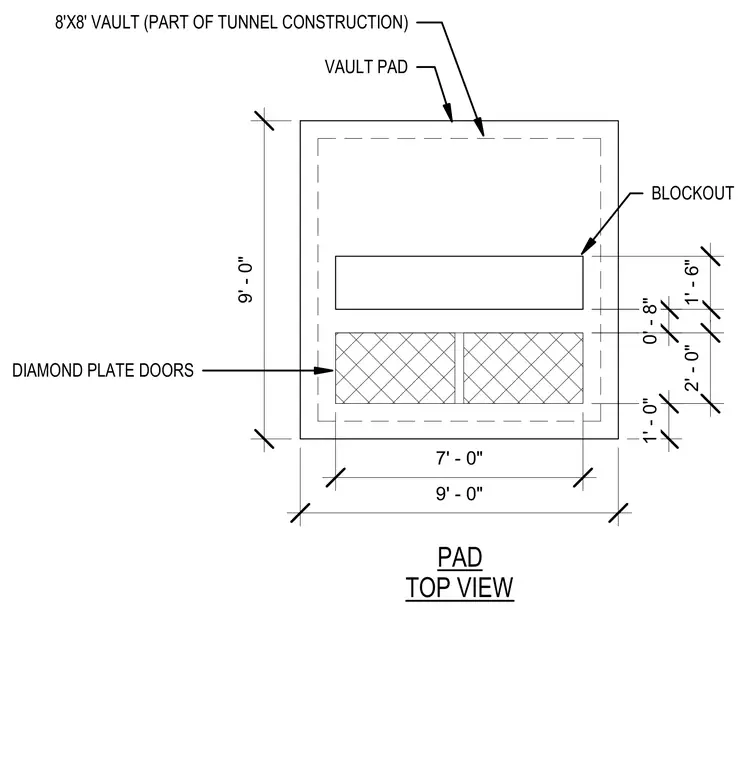

The medium voltage switchgear vault pad measures nine feet by nine feet overall, integrating an eight-foot by eight-foot vault constructed as part of the tunnel system. A rectangular blockout is positioned within the pad layout. Diamond plate doors provide access to the interior components. Dimensional callouts establish the precise layout and clearances for the vault pad assembly.
1' - 6" 0' - 8" 2' - 0" 1' - 0" 7' - 0" 9' - 0" 9' - 0" PAD TOP VIEW 8'X8' VAULT (PART OF TUNNEL CONSTRUCTION) VAULT PAD BLOCKOUT DIAMOND PLATE DOORS
