Double Door Electric Strike Access Control Wiring

Elements

About this detail

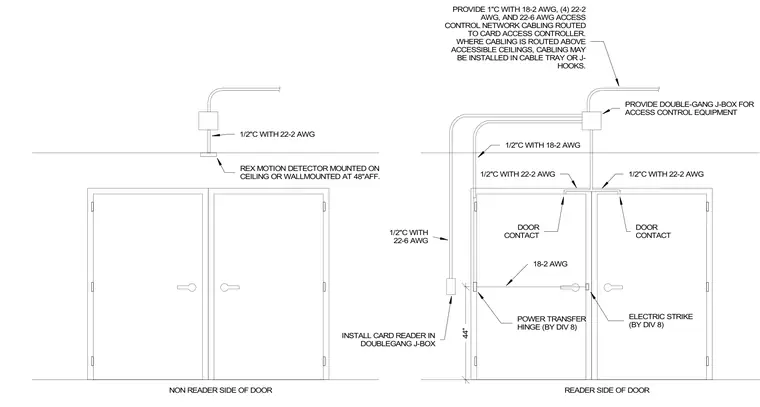

An access control system installation is detailed for a pair of doors with non-reader and reader sides shown. A request-to-exit motion detector is mounted on the ceiling or wall-mounted at forty-eight inches above finished floor, supplied by a half-inch conduit with twenty-two gauge two-conductor wire. A double-gang junction box houses the card reader at forty-four inches above finished floor, connected via half-inch conduit with twenty-two gauge six-conductor wire. Door contacts are installed on each door leaf with half-inch conduit routing eighteen-gauge two-conductor wire. A power transfer hinge provided by Division 8 connects via eighteen-gauge wire. An electric strike provided by Division 8 is wired with half-inch conduit containing twenty-two gauge two-conductor wire. A one-inch conduit with eighteen-gauge two-conductor, four runs of twenty-two gauge two-conductor, and twenty-two gauge six-conductor access control network cabling routes to the card access controller, running through cable trays or j-hooks above accessible ceilings to a double-gang junction box for access control equipment.
