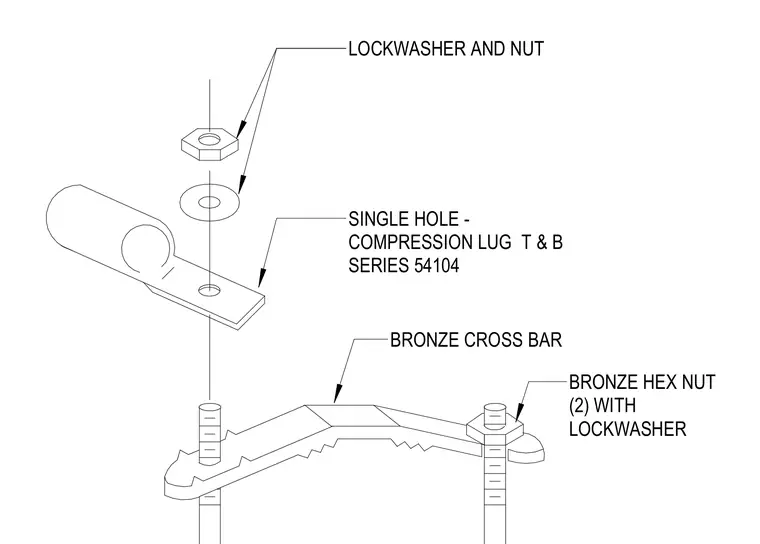

A single hole compression lug from Thomas & Betts series 54104 is secured to a bronze cross bar using a threaded stud, two bronze hex nuts, and lockwashers.
LOCKWASHER AND NUT SINGLE HOLE - COMPRESSION LUG T & B SERIES 54104 BRONZE CROSS BAR BRONZE HEX NUT (2) WITH LOCKWASHER
