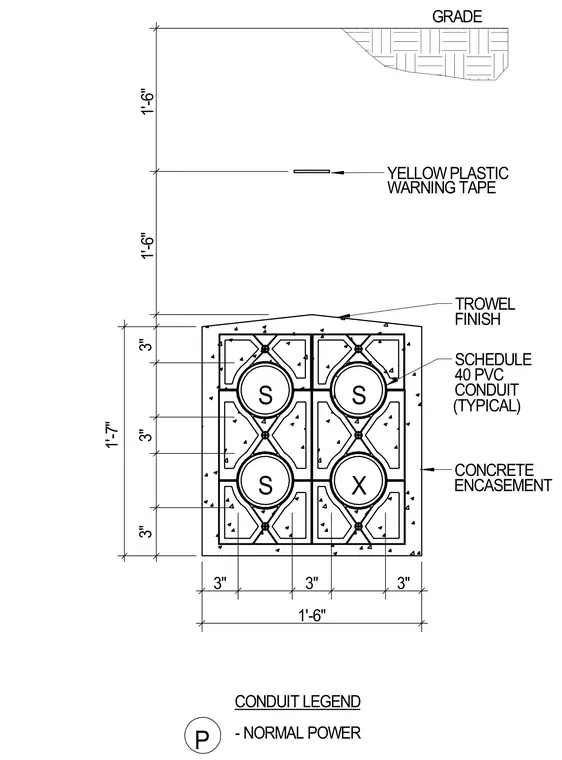

A 2x2 concrete encasement houses Schedule 40 PVC conduits set with typical spacing. The ductbank is buried below grade with a trowel finish at the top surface. A yellow plastic warning tape for normal power is positioned one foot six inches above the encasement. The entire assembly measures one foot six inches wide by one foot seven inches high, with three-inch concrete clear covers surrounding the conduits.
3" 3" 3" 1'-6" GRADE 3" P S S S X CONCRETE ENCASEMENT SCHEDULE 40 PVC CONDUIT (TYPICAL) TROWEL FINISH YELLOW PLASTIC WARNING TAPE - NORMAL POWER 1'-6" 3" 3" 1'-7" 1'-6" CONDUIT LEGEND
