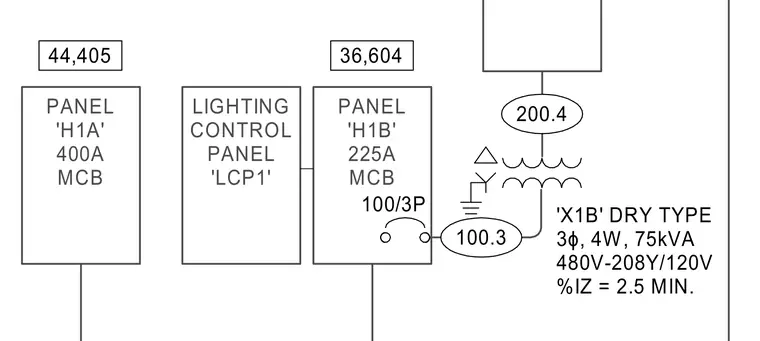

An electrical schematic shows a 400A main circuit breaker panel H1A and a 225A main circuit breaker panel H1B connected to lighting control panel LCP1. Power is stepped down through a 75 kVA three-phase four-wire dry type transformer designated X1B with a 480V primary and 208Y/120V secondary. The transformer features a minimum impedance of 2.5 percent and feeds connected loads with circuit protection.
PANEL 'H1A' 400A MCB PANEL 'H1B' 225A MCB LIGHTING CONTROL PANEL 'LCP1' 44,405 36,604 'X1B' DRY TYPE 3ϕ, 4W, 75kVA 480V-208Y/120V %IZ = 2.5 MIN. 100/3P 100.3 200.4
