N\Enabled Fixtures Or N\Smf

About this detail

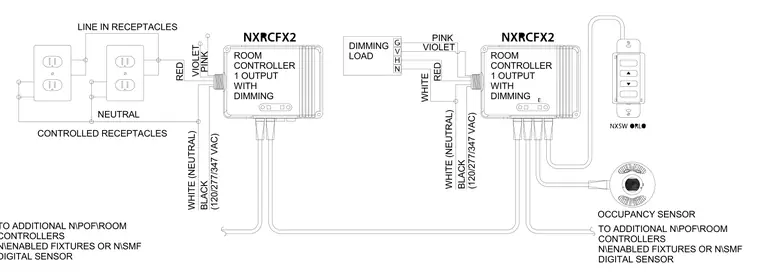

The system utilizes NXRCFX2 room controllers with single-output dimming capabilities connected to 120, 277, or 347 VAC power sources via black and white neutral conductors. Red, violet, and pink low-voltage control wires link the room controllers to dimming loads and additional room controllers, enabled fixtures, or smart digital sensors. Line-in receptacles and controlled receptacles are wired in parallel, maintaining a shared neutral return. An NXSW digital wall switch and a ceiling-mounted occupancy sensor connect directly to the room controller via communication and power lines.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
