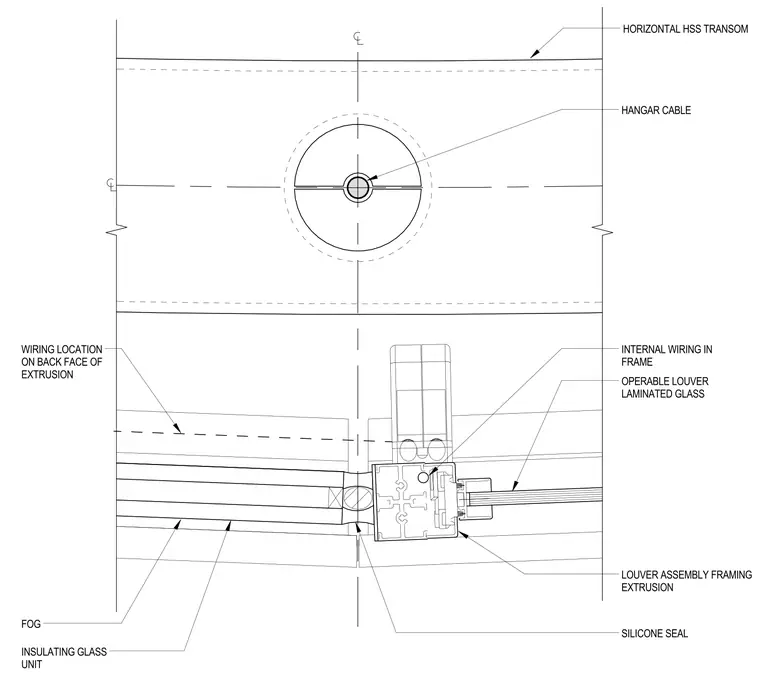

A junction between an insulating glass unit and a louver assembly framing extrusion features a silicone seal at the glass-to-louver interface and internal wiring routed through the back face of the frame extrusion. The assembly incorporates an operable louver with laminated glass supported by a horizontal hollow structural section transom and a hangar cable. Internal wiring is housed within the framing extrusion to supply power and control to the operable components.
INSULATING GLASS UNIT FOG SILICONE SEAL LOUVER ASSEMBLY FRAMING EXTRUSION OPERABLE LOUVER LAMINATED GLASS HANGAR CABLE HORIZONTAL HSS TRANSOM WIRING LOCATION ON BACK FACE OF EXTRUSION INTERNAL WIRING IN FRAME
