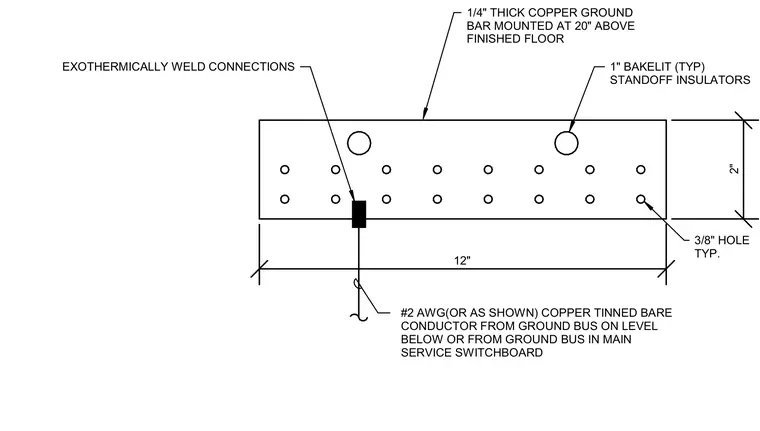

A one-quarter-inch-thick copper ground bar is mounted at twenty inches above the finished floor on one-inch Bakelite standoff insulators. The bar features typical three-eighth-inch holes spaced across its length for equipment grounding connections. An exothermic weld connects a number two American Wire Gauge copper tinned bare conductor from a ground bus on the level below or from the main service switchboard.
1/4" THICK COPPER GROUND BAR MOUNTED AT 20" ABOVE FINISHED FLOOR EXOTHERMICALLY WELD CONNECTIONS 12" 3/8" HOLE TYP. 2" 1" BAKELIT (TYP) STANDOFF INSULATORS #2 AWG(OR AS SHOWN) COPPER TINNED BARE CONDUCTOR FROM GROUND BUS ON LEVEL BELOW OR FROM GROUND BUS IN MAIN SERVICE SWITCHBOARD
