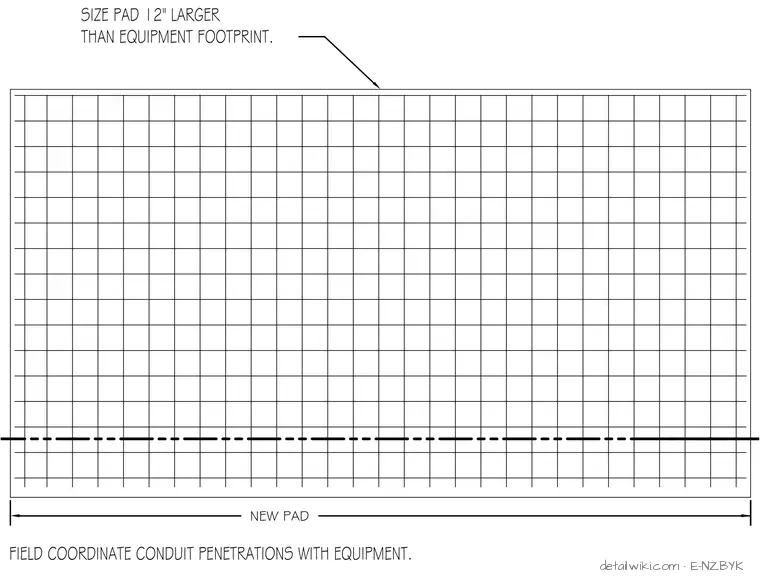

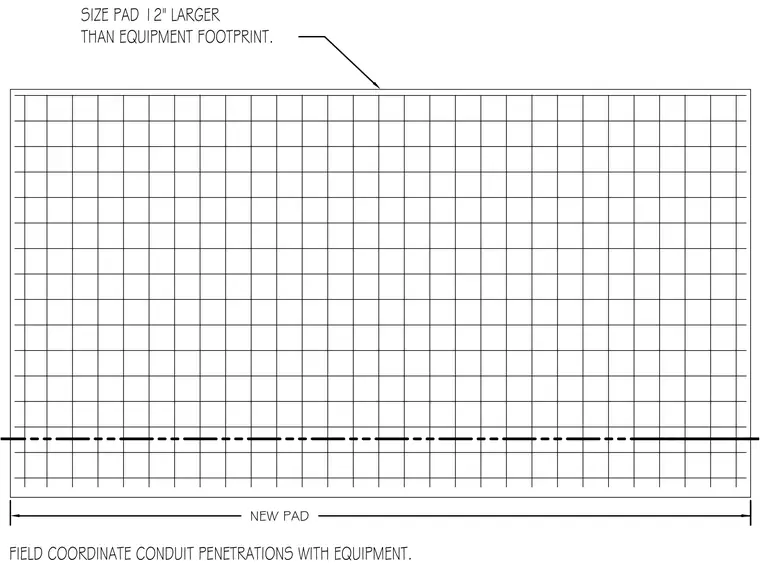

This detail outlines the layout requirements for a new concrete equipment pad. The pad must be sized twelve inches larger than the equipment footprint on all sides. Conduit penetrations are to be field coordinated with the specific equipment being installed.
