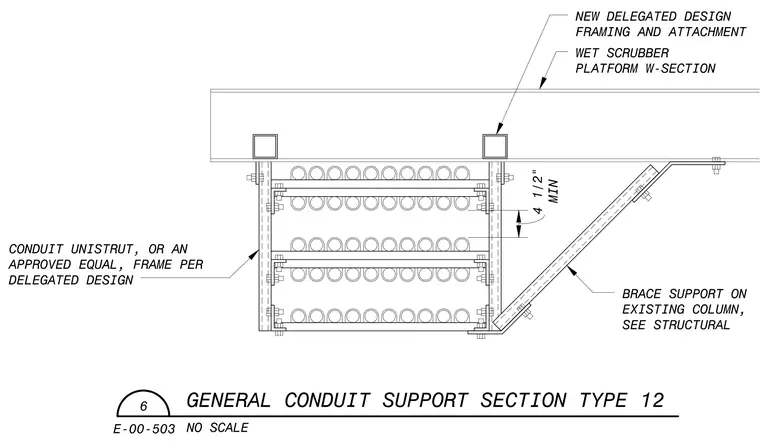

A multi-tier conduit support trapeze frame suspends multiple runs of conduit from a wet scrubber platform wide-flange section. The frame consists of Unistrut channels or an approved equal, framed per delegated design, and is laterally stabilized by a diagonal brace attached to an existing structural column. Bolted connections secure the vertical framing members to the overhead steel and the diagonal brace.
NEW DELEGATED DESIGN FRAMING AND ATTACHMENT WET SCRUBBER PLATFORM W-SECTION □ □ TT w nnnnonnnnn CM ML m u uuuuuuuuuu^ p nuDuouiuunu CONDUIT UNISTRUT, OR AN APPROVED EQUAL, FRAME PER DELEGATED DESIGN - HH m BRACE SUPPORT ON EXISTING COLUMN, SEE STRUCTURAL _ tut m GENERAL CONDUIT SUPPORT SECTION TYPE 12 E-00-503 NO SCALE
