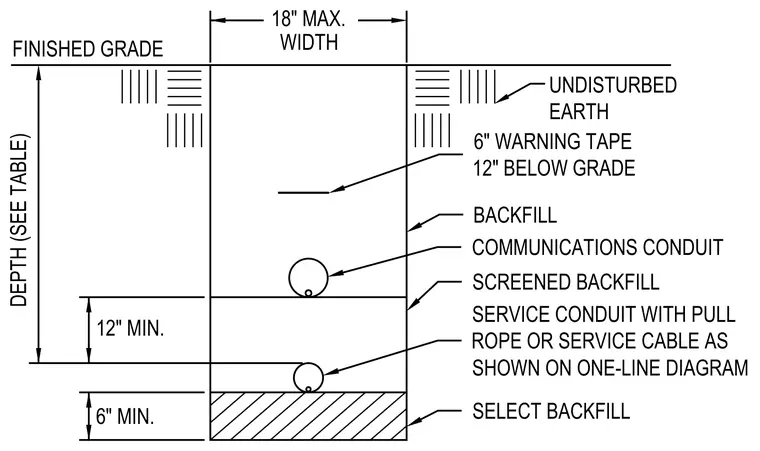

An underground electrical trench profile shows a maximum width of eighteen inches cut into undisturbed earth with a depth sized per schedule from finished grade. The trench bottom receives a minimum six-inch layer of select backfill supporting a service conduit with pull rope or service cable as shown on the one-line diagram. A minimum twelve-inch zone of screened backfill separates the lower service conduit from an upper communications conduit. Standard backfill fills the remainder of the trench, incorporating a warning tape positioned twelve inches below finished grade.
FINISHED GRADE DEPTH (SEE TABLE) UNDISTURBED EARTH 6" MIN. 12" MIN. SELECT BACKFILL SERVICE CONDUIT WITH PULL ROPE OR SERVICE CABLE AS SHOWN ON ONE-LINE DIAGRAM COMMUNICATIONS CONDUIT BACKFILL 6" WARNING TAPE 12" BELOW GRADE SCREENED BACKFILL 18" MAX. WIDTH
