Electrical · E-NSPA5

Site Receptacle Detail

Materials

Concrete Steel Stainless Steel Aluminum

Elements

Doors Foundations / Footings Site / Paving Anchors / Embeds Roof / Floor Openings

Connections

Bolted Connection Embed Plate

About this detail

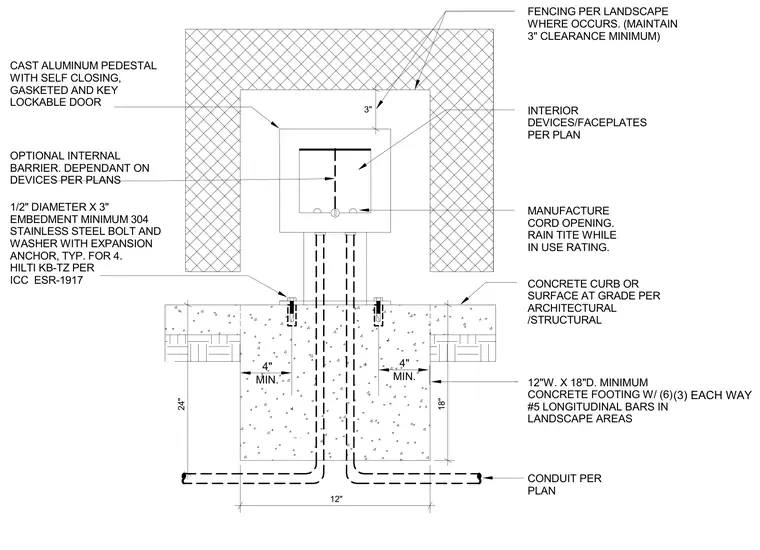

A cast aluminum pedestal with a self-closing, gasketed, and key-lockable door sits atop a concrete curb or surface at grade, anchored by four 1/2-inch diameter by 3-inch embedment 304 stainless steel bolts and washers using Hilti KB-TZ expansion anchors per ICC ESR-1917. The pedestal houses interior devices and faceplates per plan, an optional internal barrier dependent on devices, and a cord opening with a rain-tight-while-in-use rating. It is supported by a 12-inch wide by 18-inch deep minimum concrete footing reinforced with six #5 longitudinal bars in landscape areas. Conduits enter per plan from below, maintaining a 3-inch minimum clearance from fencing where it occurs.
