Electrical · E-NSHZ9

Centrifuge Feed Pump Motor Control and Communication Riser

About this detail

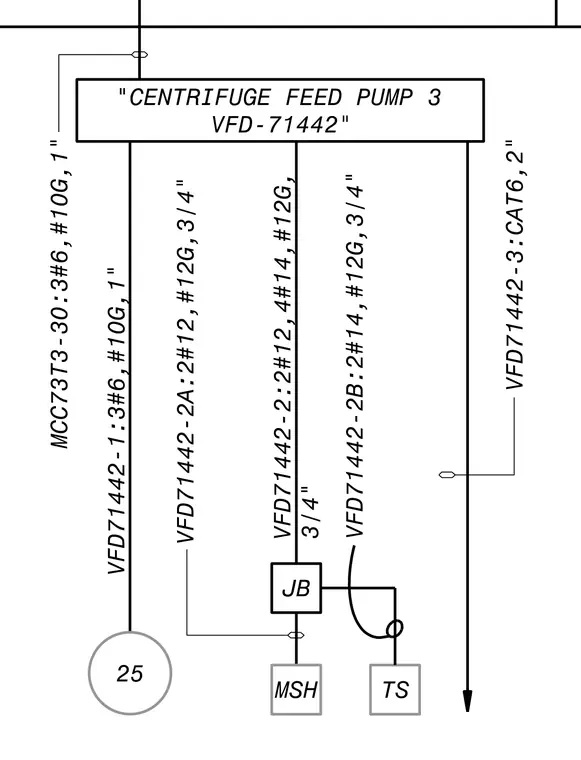

An electrical schematic diagram details the power supply, variable frequency drive feeds, junction box routing, and communication lines for Centrifuge Feed Pump VFD-71442. Power is supplied from motor control center circuit MCC73T3-30 through three number 6 conductors and one number 10 ground in a one-inch conduit. Control and instrumentation wiring includes multiple multi-conductor cables routed through a junction box with associated conduit sizes and ground wires. A CAT6 data cable provides communication to the unit.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
