Provide a four and eleven-sixteenths by four and eleven-sixteenths by two and one-eighth inch deep junction box equipped with a single gang plaster ring. Extend a one-inch conduit containing a nylon pull rope from the junction box to the nearest intermediate distribution frame cabinet. Complete the wiring and designate the circuit accordingly.

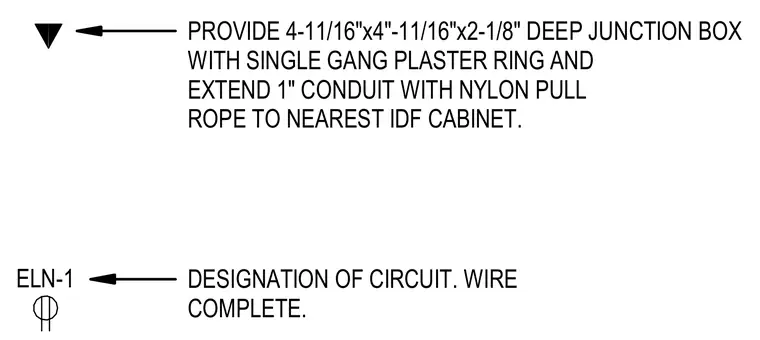

ELN-1 PROVIDE 4-11/16"x4"-11/16"x2-1/8" DEEP JUNCTION BOX WITH SINGLE GANG PLASTER RING AND EXTEND 1" CONDUIT WITH NYLON PULL ROPE TO NEAREST IDF CABINET. DESIGNATION OF CIRCUIT. WIRE COMPLETE.
