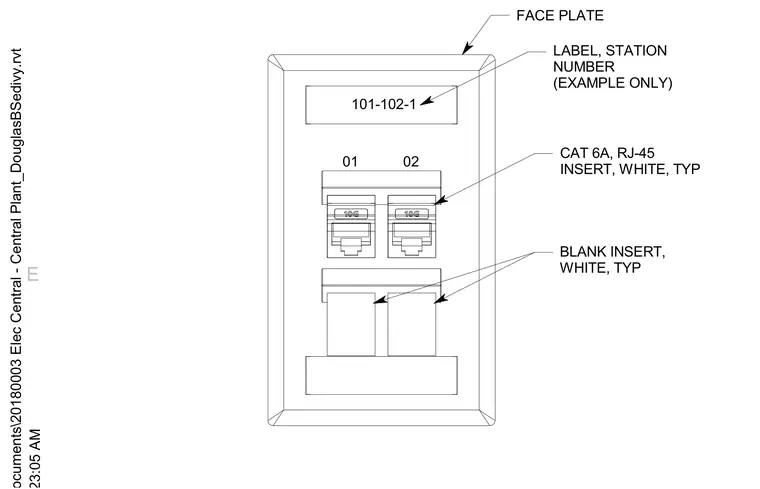

A faceplate houses two Category 6A RJ-45 white data inserts and two blank white inserts typically used for future expansion. A station number label is positioned at the top of the faceplate for identification.
CAT 6A, RJ-45 INSERT, WHITE, TYP BLANK INSERT, WHITE, TYP LABEL, STATION NUMBER (EXAMPLE ONLY) FACE PLATE 01 02 101-102-1 E
